PRODUCT

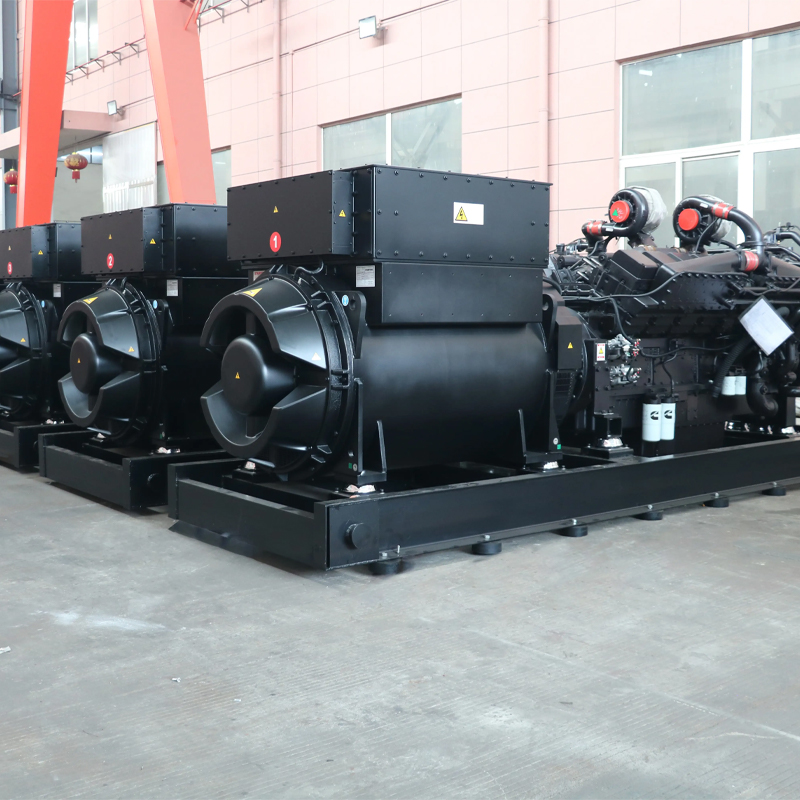

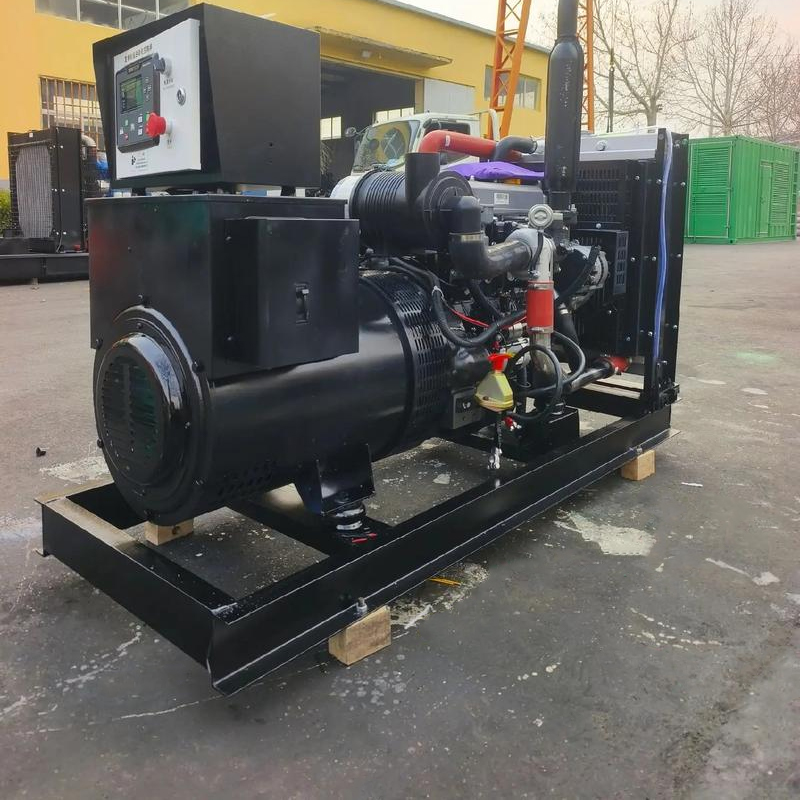

Shangchai generator set 55-1720KW

Shangchai generator set 55-1720KW

Unit Model Output Power (kW) Electric current Diesel Engine Model Number of Cylinders Bore × Stroke Displacement Fuel Consumption Rate Unit Dimensions (mm) Unit Weight Voltage (V) Frequency Output Detailed Specifications
Prime Standby
S60 55 60 99A SC4H95D2 4 105*124 4.3L 232.5g/kw.h 2500* 900* 1510 1200kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S75 70 75 126A SC4H115D2 4 105* 124 4.3L 204g/kw.h 2500 * 900 * 1500 1200kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S105 95 105 171A SC4H160D2 4 105* 124 4L 193g/kw.h 2500*870 * 1340 970kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S120 110 120 198A SC4H180D2 4 105*124 4.3L 193g/kw.h 2700* 900 *1750 1070kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S145 130 145 234A SC8D220D2 6 114 * 135 8.27L 200g/kw.h 2700 * 900 *1750 2300kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S155 140 155 252A SC7H230D2 6 105*124 6.5L 193g/kw.h 2700 * 900 *1750 2400kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S165 150 165 270A SC7H250D2 6 105* 124 6.5L 193g/kw.h 2700 * 900 * 1800 1380kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S185 165 185 302.4A SC8D280D2 6 114 * 135 8.28L 200g/kw.h 2700 *1000 * 1500 2400kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S190 170 190 306A SC13G280D2 6 135 * 150 8.8L 200g/kw.h 2700 * 1000 *1500 2400kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S205 185 205 323A SC13G310D2 6 135 * 150 12.88L 200g/kw.h 2700 *1000 * 1500 2400kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S207 185 207 333A SC9D310D2 6 114 *144 8.8L 200g/kw.h 3000*1080*1700 1600kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S230 210 230 378A SC9D340D2 6 114*144 8.27L 195g/kw.h 3000 *1080* 1700 2500kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S235 215 235 387A SC13G355D2 6 135 *150 8.82L 200g/kw.h 3150*1240 * 1750 2500kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S280 250 280 450A SC13G420D2 6 135 *150 12.88L 200g/kw.h 3150*1240 *1750 2420kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S305 280 305 504A SC12E460D2 6 128* 153 11.8L 192g/kw.h 3000*1200*1750 3370kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S335 305 335 549A SC12E500D3 6 128*153 11.8L 192g/kw.h 3300*1340*1900 3380kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S340 310 340 545A SC15G500D2 6 135*165 14.16L 192g/kw.h 3300* 1340*1900 3390kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S405 365 405 657A SC25G610D2 12 135 *150 25.8L 202g/kw.h 3500 *1570*1980 3650kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S460 410 460 738A SC25G690D2 12 135*150 25.8L 202g/kw.h 3500*1610*2110 3800kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S505 460 505 828A SC27G755D2 12 135* 150 26.6L 202g/kw.h 3500*1610*2110 3900kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S550 500 550 900A SC27G830D2 12 135 *150 26.6L 202g/kw.h 3500 *1610* 2110 4200kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S600 550 600 990A SC27G900D2 12 135*155 26.6L 202g/kw.h 3500*1610*2110 5000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S640 580 640 1044A S6R2-PTAA-C 6 170*220 29.96L 206g/kw.h 4000*1330*2100 4850kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S660 600 660 1080A SC33W990D2 6 180*215 32.8L 215g/kw.h 4400 *1690*2150 4500kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S780 710 780 1278A SC33W1150D2 6 180*215 32.8L 215g/kw.h 4400*1700*2150 5500kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1080 980 1080 1764A S12R-PTA-C 12 170*180 49.03L 220g/kw.h 6800*1600*2300 8300kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1160 1050 1160 1890A S12R-PTA2-C 12 170*180 49.03L 220g/kw.h 6800*1600*2300 8300kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1270 1160 1270 2088A S12R-PTAA2-C 12 170*180 49.03L 220g/kw.h 6800*1600*2300 8300kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1450 1310 1450 2358A S16R-PTA-C 16 170*180 65.37L 238g/kw.h 7800*1600*2500 9500kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1600 1450 1600 2610A S16R-PTA2-C 16 170*180 65.37L 238g/kw.h 8300*1600*2500 9800kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
S1720 1530 1720 2754A S16R-PTAA2-C 16 170*180 65.37L 238g/kw.h 8300*1600*2500 9800kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications

Material certificate


Factory & Shipping

详情页内页

Company Introduction

Shandong Zhongshi International Trade Co., Ltd., located in Jinan City, Shandong Province, is a company with independent import and export qualifications. Its main products include diesel generator sets, mini, medium, and large multi-functional skid steer loaders, skid steer loader accessories, and various attachments. These products are exported to Australia, the UAE, India, the United States, and many other countries and regions.

We consistently adhere to a technology-driven approach, providing customers with high-quality and satisfactory products. Based on international standards, our goal is to build a great and trustworthy machinery brand worldwide.
