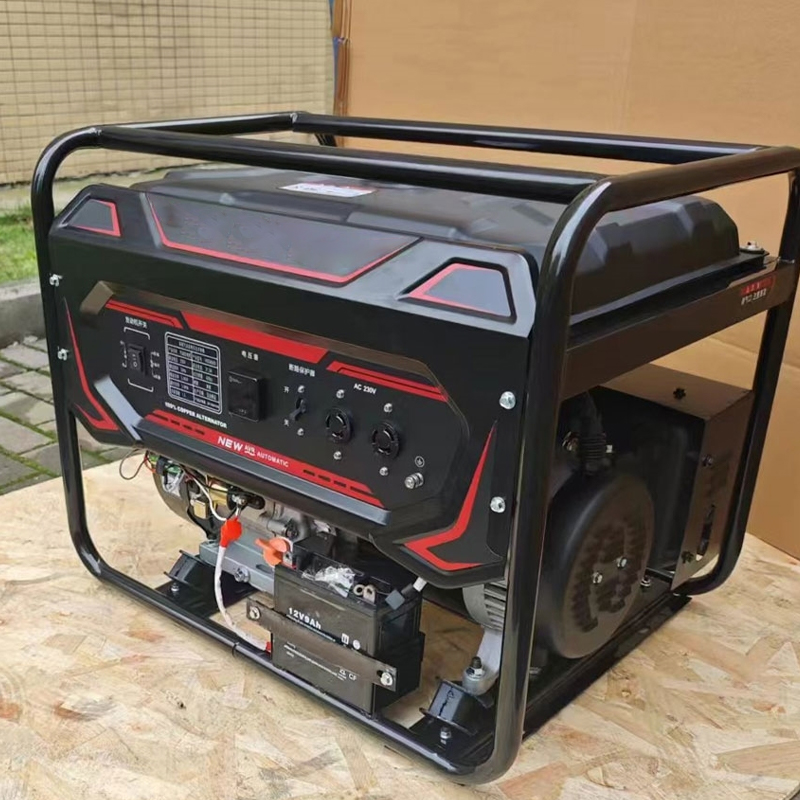

Open-frame gasoline generator 3-15KW

‹

Open-frame gasoline generator 3-15KW

›

‹

  • Open-frame gasoline generator 3-15KW
  • Open-frame gasoline generator 3-15KW

›

详情页
Generator Unit Model KW V Starting method Power model Engine type Unit dimensions (mm) Weight (kg)
TO3500ET-V 3 220 electric start TO168FA Single-cylinder, air-cooled, four-stroke 620 ×430 ×500 45
TO6500ET-V 5 220/380 Manual/Electric Start TO186 Single-cylinder, air-cooled, four-stroke 700 ×530 ×540 85
TO7100ET-V 6 220/380 Manual/Electric Start TO190 Single-cylinder, air-cooled, four-stroke 700 ×530 ×540 85
TO7900ET-V 7 220/380 Manual/Electric Start TO192 Single-cylinder, air-cooled, four-stroke 700 ×530 ×540 85
TO9000ET-V 8 220/380 Manual/Electric Start TO192 Single-cylinder, air-cooled, four-stroke 700 ×530 ×540 90
TO10000ET-V 9 220/380 Manual/Electric Start TO192F Single-cylinder, air-cooled, four-stroke 700 ×530 ×540 110
TO11000ET-V 10 220/380 electric start TO199FD Single-cylinder, air-cooled, four-stroke 815 ×650 ×735 165/175
TO11000ET-V 10 220/380 electric start TOR670 Twin-cylinder, air-cooled, four-stroke 950 ×620 ×650 165/175
TO13000ET-V 12 220/380 electric start TOR670 Twin-cylinder, air-cooled, four-stroke 950 ×620 ×650 165/175
TO15000ET-V 15 220/380 electric start TOR670 Twin-cylinder, air-cooled, four-stroke 950 ×620 ×650 165/175

Scope of Application
This product is suitable for providing long-term power supply for various on-site emergency construction, rescue and repair work in industries such as fieldwork, disaster relief, engineering, power plants, railways, plant power, grid power, and flood control and disaster relief.

Optional Configurations
Starting Method: Remote control start, ATS fully automatic, external switch (within 8 meters), panel external connection (within 8 meters)
Frequency and Voltage: 60Hz, 100V/110V/120V/230V/240V/415V/420V and other global voltages
Other Optional Configurations: Equal power switching

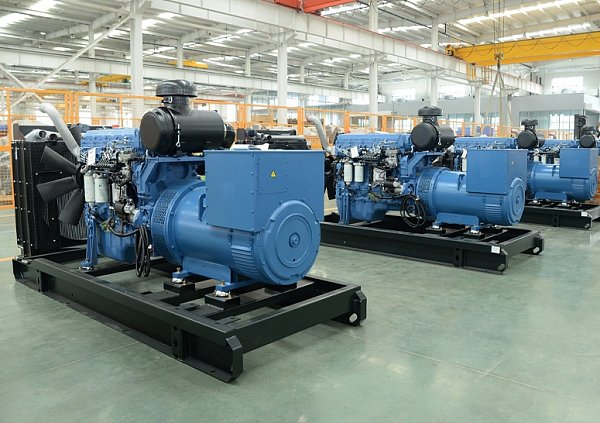

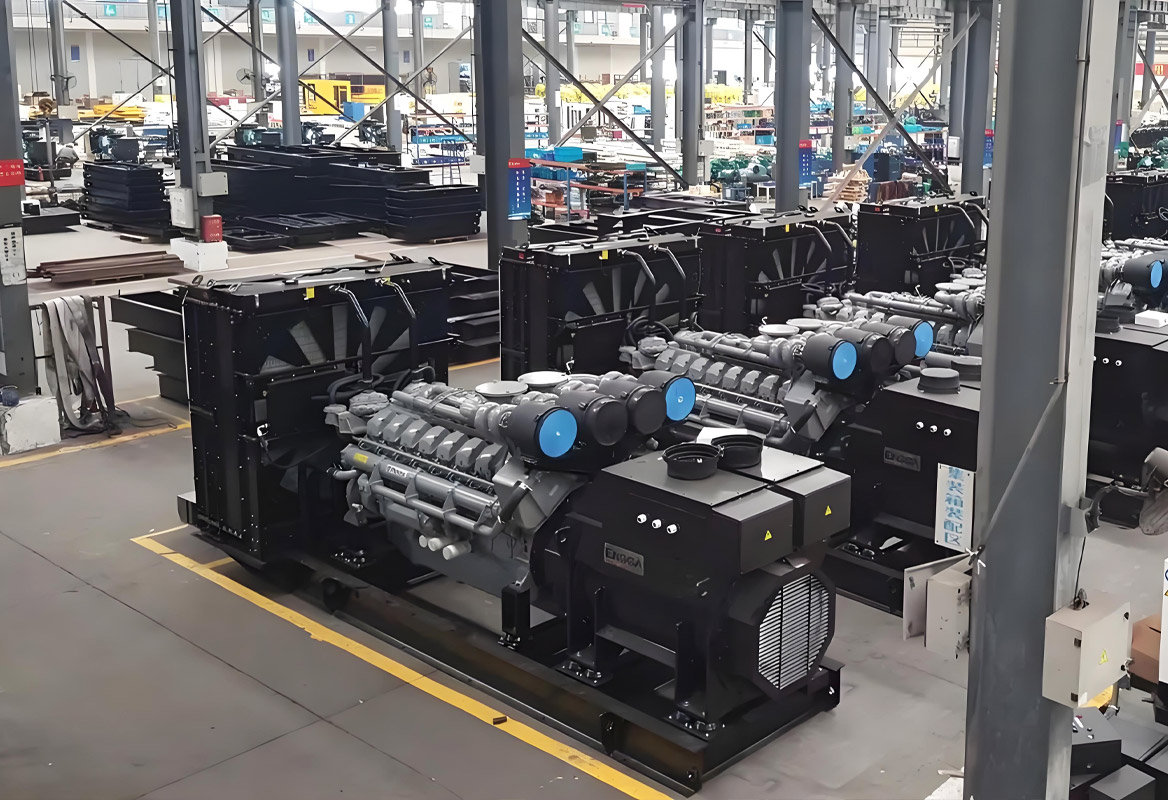

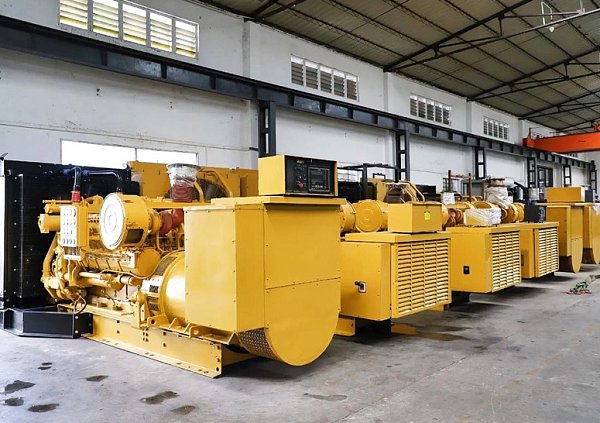

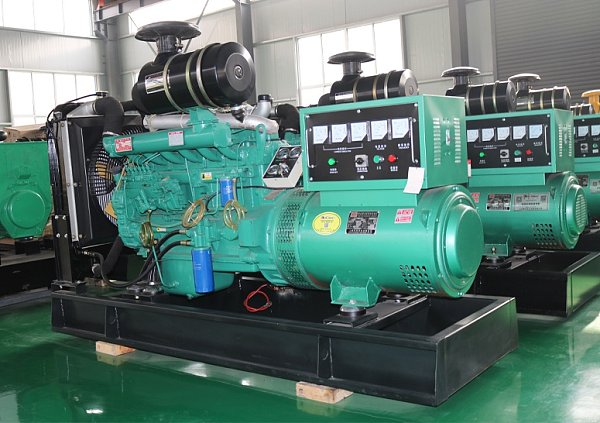

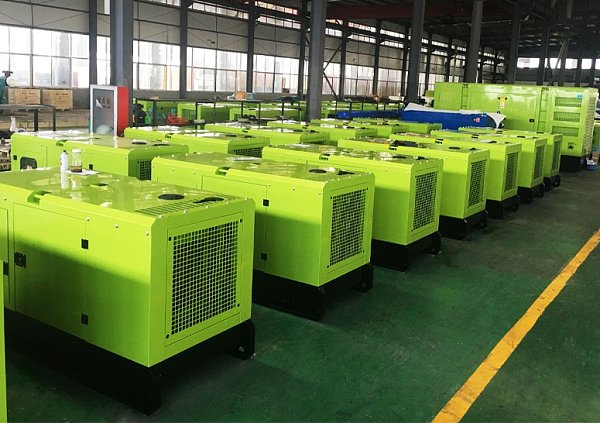

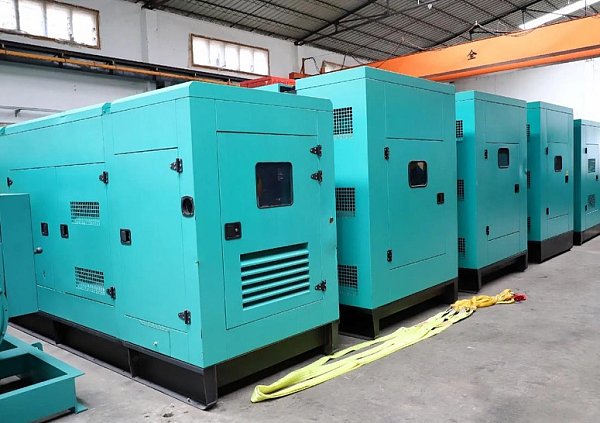

Factory Show

  • 6

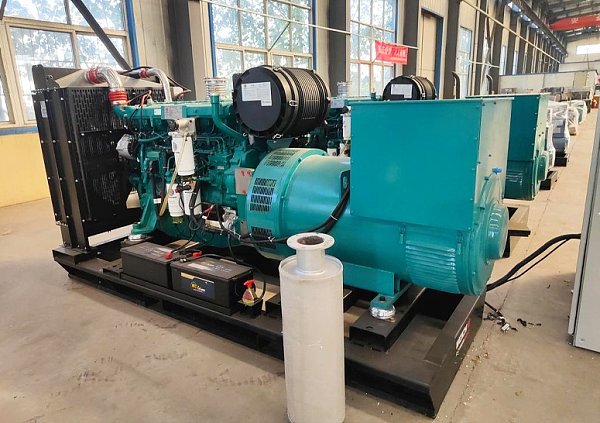

  • 7
  • 8
  • 9

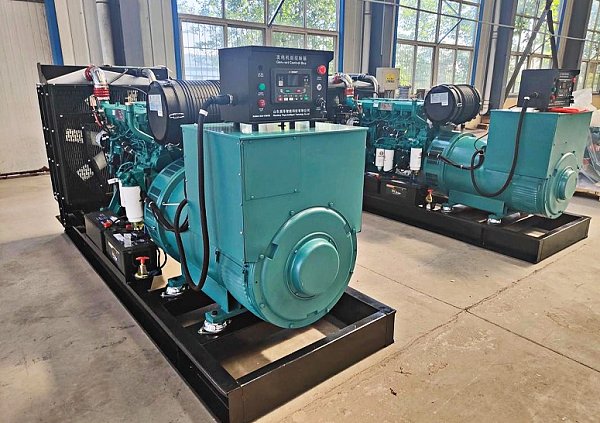

  • 10
  • 11
  • 12

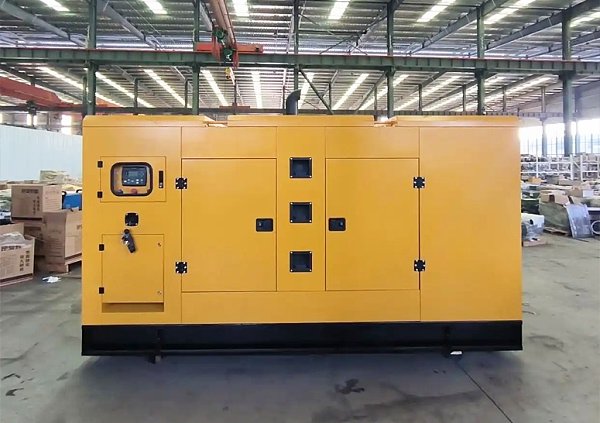

  • 13

Company Introduction

Shandong Zhongshi International Trade Co., Ltd., located in Jinan City, Shandong Province, is a company with independent import and export qualifications. Its main products include diesel generator sets, mini, medium, and large multi-functional skid steer loaders, skid steer loader accessories, and various attachments. These products are exported to Australia, the UAE, India, the United States, and many other countries and regions.

We consistently adhere to a technology-driven approach, providing customers with high-quality and satisfactory products. Based on international standards, our goal is to build a great and trustworthy machinery brand worldwide.
