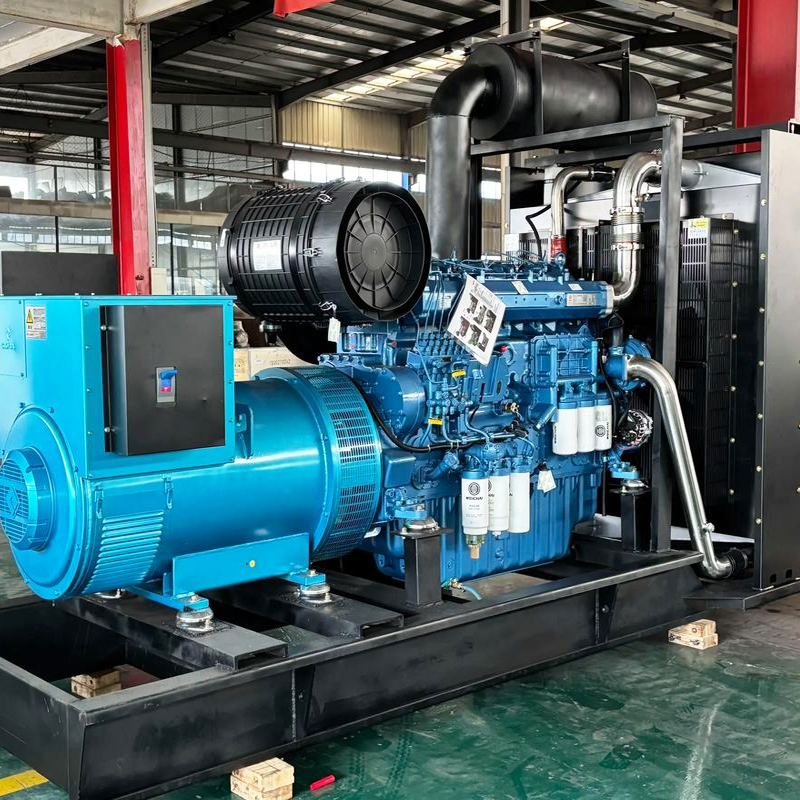

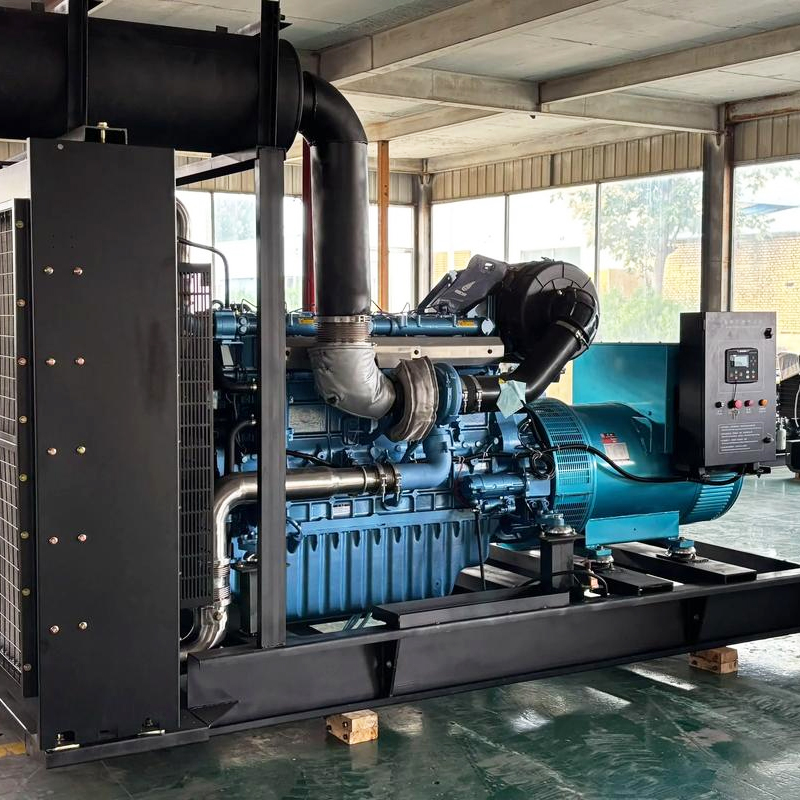

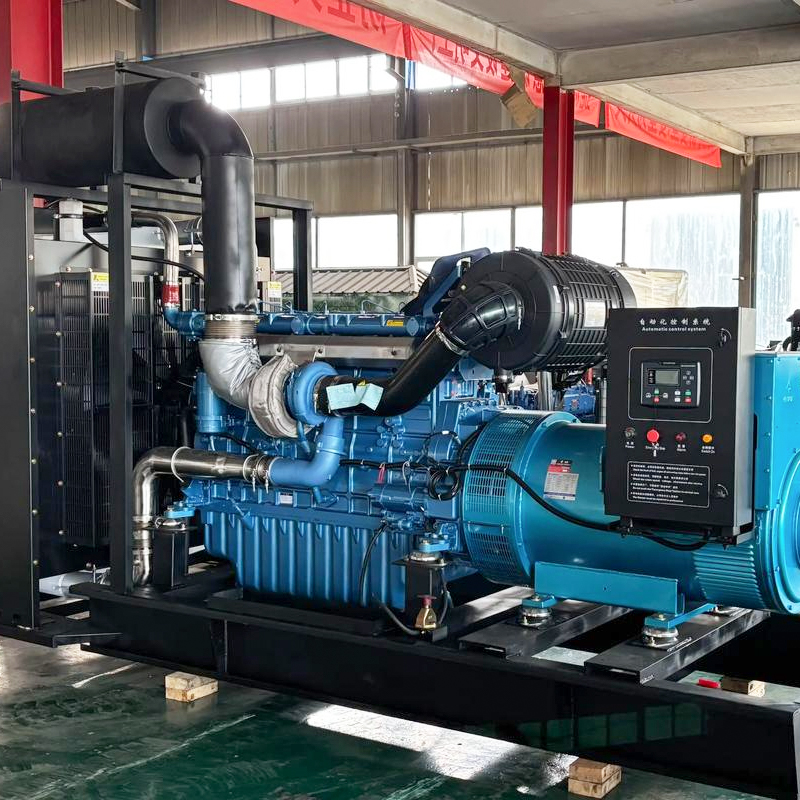

Weichai Series 10–3300 kW

‹

Weichai Series 10–3300 kW

›

‹

  • Weichai Series 10–3300 kW
  • Weichai Series 10–3300 kW
  • Weichai Series 10–3300 kW
  • Weichai Series 10–3300 kW

›

详情页
Unit Model Output Power (kW) Electric current Diesel Engine Model Number of Cylinders Bore × Stroke Displacement Fuel Consumption Rate Unit Dimensions (mm) Unit Weight Voltage (V) Frequency Output Detailed Specifications
Prime Standby
W11 10 11 18A WP2.1D18E2 4 85*92 L g/kw.h 1950*960*1300 601kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W13 12 13 22A WP2.1D18E2 4 85*92 L g/kw.h 1950*960*1300 604kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W18 16 18 29A WP2.5D22E2 4 90*100 L g/kw.h 1950*960*1300 690kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W22 20 22 36A WP3.9D33E2 4 102*118 L g/kw.h 2200*1050*1400 890kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W22 20 22 36A D226B-3D 3 105*120 L g/kw.h 2300*960*1490 1090kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W25 24 25 46.8A 495D10-1 4 95*115 3.26L 248g/kw.h 1600*600*1000 650kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W33 30 33 54A K4100D5-1 4 100*115 3.61L 248g/kw.h 1600*600*1000 680kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W33 30 33 54A K4102D3-1 4 100*115 3.76L 248g/kw.h 1600*600*1000 680kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W45 40 45 81A K4100ZD1 4 100*115 3.61L 238g/kw.h 1750*700*1100 711kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W55 50 55 90A PHF4056ZD1 4 105*125 4.33L 224g/kw.h 1800*700*1400 807kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W70 64 70 115A WP4D100E200 4 105*130 L g/kw.h 2800*1050*1630 1620kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W85 75 85 135A PHF6084ZD1 6 105*125 6.49L 230g/kw.h 1800*700*1400 950kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W100 90 100 162A PHF6100ZLD1 6 105*125 6.49L 229g/kw.h 2350*720*1500 1000kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W110 100 110 180A PHF6110ZLD1 6 105*130 6.75L 224g/kw.h 2450*720*1400 1100kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W120 110 120 198A PHF6110ZLD1 6 105*130 6.75L 229g/kw.h 2600*900*1661 1200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W130 120 130 216A PHF6132ZLD1 6 105*135 7.02L 231g/kw.h 2600*900*1500 1500kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W165 150 165 270A R6113ZLD1 6 113*125 7.518L 231g/kw.h 2800*900*1650 1600kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W198 180 198 325A WP10D238E200 6 126*130 L g/kw.h 3900*1320*2148 2652kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W220 200 220 361A WP10D264E200 6 126*130 L g/kw.h 3900*1320*2148 2672kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W275 250 275 451A WP12D317E200 6 126*155 L g/kw.h 4200*1320*2148 2800kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W330 300 330 541A WP12D315E10 6 125*155 L g/kw.h 4400*1310*2217 3620kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W330 300 330 541A WP12D337E20 6 126*155 L g/kw.h 4400*1310*2217 3650kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W330 300 330 541A WP13D385E200 6 127*165 L g/kw.h 4300*1300*2400 3550kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W352 320 352 577A WP13D385E200 6 127*165 L g/kw.h 4300*1300 2400kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W396 360 396 649A 6M26D447E200 6 150*150 L g/kw.h 500*1750*2725 6217kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W440 400 440 722A 6M26D484E200 6 150*150 L g/kw.h 500*1750*2725 6320kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W506 460 506 830A 6M33D572E200 6 150*185 L g/kw.h 5100*1750*2849 6700kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W550 500 550 902A 6M33D605E200 6 150*185 L g/kw.h 5100*1750*2849 6750kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W660 600 660 1082A 12M26SRP 12 150*150 L g/kw.h 6058*2438*3151 10300kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W660 600 660 1082A 12M26D748E200 12 150*150 L g/kw.h 6058*2438*3151 10300kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W704 640 704 1155A 12M26D792E200 12 150*150 L g/kw.h 6058*2438*3151 10300kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W792 720 792 1425A 12M26D902E200 12 150*150 L g/kw.h 6058*2438*3151 10500kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W880 800 880 1443A 12M26D902E200 12 150*150 L g/kw.h 6058*2438*3151 10660kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W880 800 880 1443A 12M26D968E200 12 150*150 L g/kw.h 6058*2438*3251 10660kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W990 900 990 1623A 12M33D1108E200 12 150*185 L g/kw.h 6058*2438*3151 11200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1100 1000 1100 1804A 12M33D1210E200 12 150*185 L g/kw.h 6058*2438*3151 11500kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1200 1100 1200 2160A 12M33D1320E200 12 159*159 50L 191g/kw.h 5900*2270*2500 12000kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1320 1200 1320 2376A 12M33D1450E310 12 159*159 50L g/kw.h 5900*2270*2500 12000kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1400 1250 1400 2520A 16M33D1530E310 16 159*159 60L 191g/kw.h 6200*2300*2550 15800kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1440 1300 1440 2592A 16M33D1580E310 16 159*159 60L 191g/kw.h 6200*2300*2550 15800kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1520 1400 1520 2736A 16M33D1680E310 16 159*159 60L 191g/kw.h 6200*2300*2550 15800kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1650 1500 1650 2970A 16M33D1800E310 16 159*159 60L 191g/kw.h 6200*2300*2550 15800kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W1800 1600 1800 3240A 20M33D2020E310 20 159*159 68L 193g/kw.h 6400×2800×3700 16200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W2000 1800 2000 3600A 12M55D2210E310 12 159*159 68L 193g/kw.h 6400×2800×3700 16200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W2200 2000 2200 3960A 12M55D2450E310 12 159*159 68L 193g/kw.h 6400×2800×3700 16200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W2400 2200 2400 4320A 12M55D2700E310 12 159*159 68L 193g/kw.h 6400×2800×3700 16200kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W2500 / 2500 4500A 16M55D2750E310 16 159*159 72L 200g/kw.h 6900×2900×3800 18900kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W2650 2400 2650 4770A 16M55D2900E310 16 159*159 72L 200g/kw.h 6900×2900×3800 18900kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W3000 2600 3000 5400A 16M55D3300E310 16 159*159 72L 200g/kw.h 6900×2900×3800 18900kg 220/380 50Hz Three-phase four-wire Detailed Specifications
W3300 3000 3300 5940A 16M55D3600E310 16 159*159 72L 200g/kw.h 6900×2900×3800 18900kg 220/380 50Hz Three-phase four-wire Detailed Specifications

Factory Show

  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

Company Introduction

Shandong Zhongshi International Trade Co., Ltd., located in Jinan City, Shandong Province, is a company with independent import and export qualifications. Its main products include diesel generator sets, mini, medium, and large multi-functional skid steer loaders, skid steer loader accessories, and various attachments. These products are exported to Australia, the UAE, India, the United States, and many other countries and regions.

We consistently adhere to a technology-driven approach, providing customers with high-quality and satisfactory products. Based on international standards, our goal is to build a great and trustworthy machinery brand worldwide.
