PRODUCT

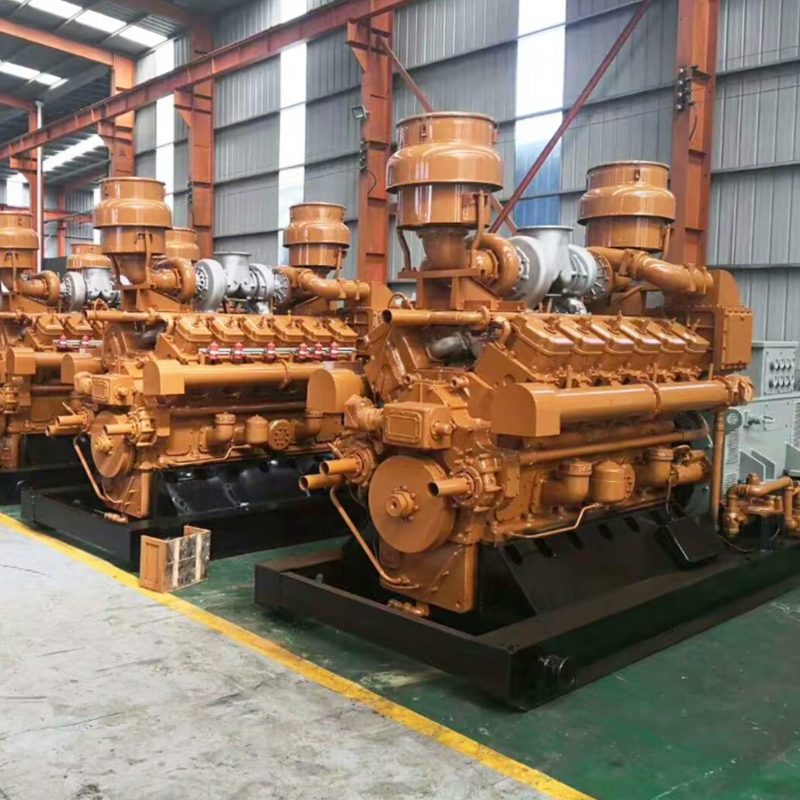

Jichai Series (410–2200 kW)

Jichai Series (410–2200 kW)

详情页
Unit Model Output Power (kW) Electric current Diesel Engine Model Number of Cylinders Bore × Stroke Displacement Fuel Consumption Rate Unit Dimensions (mm) Unit Weight Voltage (V) Frequency Output Detailed Specifications
Prime Standby
J450 410 450 738A 6190ZL1 6 190*210 36L 220g/kw.h 4500*1800*2400 6800kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J540 490 540 882A G6190ZLCD 6 190*210 35.73L 210g/kw.h 4500*1800*2400 6800kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J600 545 600 981A G8V190ZL 8 190*210 47.6L 220g/kw.h 4800*2000*2680 10000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J880 800 880 1440A Z12V190B 12 190*215 71.45L 220g/kw.h 6000*2040*2680 14000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J990 900 990 1620A Z12V190BD7 12 190*210 71.45L 220g/kw.h 6000*2040*2680 14000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J1000 910 1000 1638A G12V190ZL1 12 190*210 71.45L 220g/kw.h 6000*2040*3000 11000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J1200 1000 1200 1800A A12V190ZLD 12 190*215 73.15L 220g/kw.h 6000*2040*3000 11000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J1320 1200 1320 2160A B12V190ZL 12 190*215 73.15L 220g/kw.h 6000*2040*2680 14000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J1360 1250 1360 2450A BH12V190Z 12 190*215 73.15L 220g/kw.h 6000*2040*2680 14000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J1740 1580 1740 2844A H12V190Z 12 190*215 73.15L 220g/kw.h 7880*2400*2800 17000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J2000 1800 2000 3240A H16V190ZL 16 190*210 73.15L 220g/kw.h 7000*1950*3000 18000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications
J2200 2000 2200 3600A H16V190ZL 16 190*210 73.15L 220g/kw.h 7000*1950*3000 18000kg 220/380 50Hz Three-Phase, Four-Wire Detailed Specifications

Factory Show

  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

Company Introduction

Shandong Zhongshi International Trade Co., Ltd., located in Jinan City, Shandong Province, is a company with independent import and export qualifications. Its main products include diesel generator sets, mini, medium, and large multi-functional skid steer loaders, skid steer loader accessories, and various attachments. These products are exported to Australia, the UAE, India, the United States, and many other countries and regions.

We consistently adhere to a technology-driven approach, providing customers with high-quality and satisfactory products. Based on international standards, our goal is to build a great and trustworthy machinery brand worldwide.
