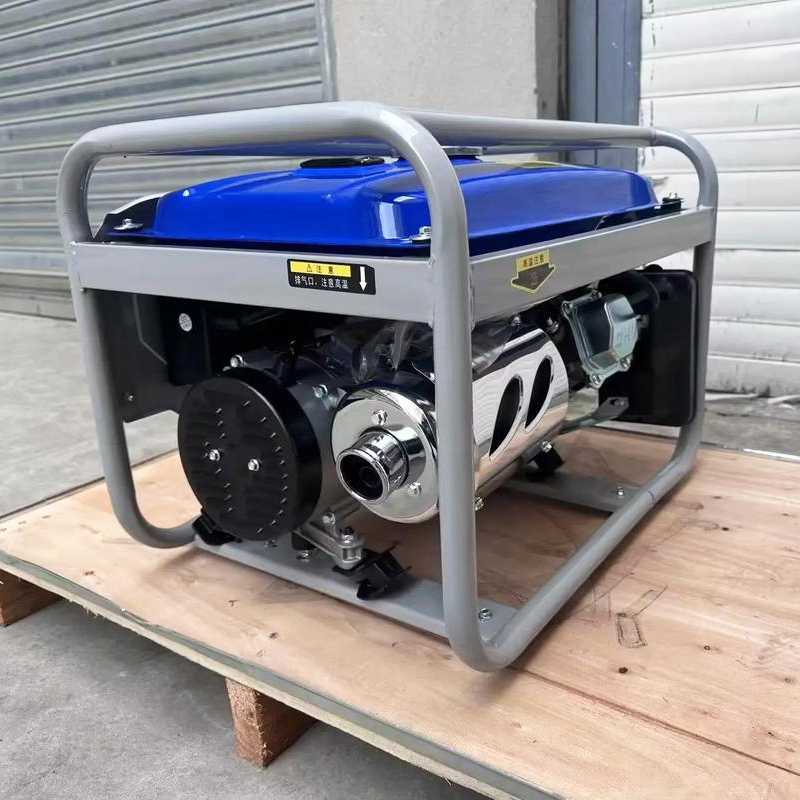

4500W - 8000W Gasoline Generator Set

4500W - 8000W Gasoline Generator Set

详情页

Power: 4500W - 10000W
Alternator with AVR
OHV Single cylinder engine
Manual Start, Carton packing
Optional Electric start with battery, wheel kit.



Neat and economical for classical design.
Advanced AVR offers over-voltage, overheated and overload protection for the generator.
Frame designed for better protection.
Oil alert system with automatic engine shut-off.
Original YAMAHA Engine equipped.
Hydraulic-Magnetic circuit breaker.
Fuel tank enables Long-time for running.
Large muffler for quiet operation.

Model T5500 T6500 T7500 T8500
AC Frequency (Hz) 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz
AC Output voltage(V) 120;220;230;240; 120;220;230;240; 120;220;230;240; 120;220;230;240;
Rated Power 4500W 5000W 6000W 7000W
Max. Power 5000W 5500W 7000W 8000W
Power Factor 1 1 1 1
DC Output 12V/8.3A 12V/8.3A 12V/8.3A 12V/8.3A
Engine GE420 GE420 GE460 GE460
Type 4-stroke OHV; Air-cooled; Gasoline Engine
Displacement(cc) 420 420 439 439
Starting System Recoil or Electric Recoil or Electric Recoil or Electric Recoil or Electric
Lubrication oil SAE 10W/30 SAE 10W/30 SAE 10W/30 SAE 10W/30
Oil capacity (L) 1.1 1.1 1.1 1.1
Compression ratio 8.0:1 8.0:1 8.0:1 8.0:1
Bore×Stroke 90mm×66mm 90mm×66mm 92mm×66mm 92mm×66mm
Max.Output(hp/rpm) 15/3600 15/3600 16/3600 16/3600
Fuel Consumption (g/hp.h) ≤390 ≤390 ≤390 ≤390
Ignition System Non-contact transistorized ignition (T.C.I)
Spark Plug F6TC F6TC F6TC F6TC
Fuel Tank Capacity(l) 25 25 25 25
Continuous Work(h) 10 10 10 6
Noise Level LwA dB(A) 74 74 74 74
Dimension (LxWxH) mm 697X525X562 697X525X562 713X541X569 713X541X569
Gross Weight(kg) 79 81 83 86
20ft Container Qty 135 135 135 135
40ft HQ Container Qty 292 292 280 280

Factory Show

  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

Company Introduction

Shandong Zhongshi International Trade Co., Ltd., located in Jinan City, Shandong Province, is a company with independent import and export qualifications. Its main products include diesel generator sets, small, medium, and large gas generators, and individual generator units. Products are exported to Australia, the UAE, India, the United States, and many other countries and regions.

We consistently adhere to a technology-driven approach, providing customers with high-quality and satisfactory products. Based on international standards, our goal is to build a great and trustworthy machinery brand worldwide.
