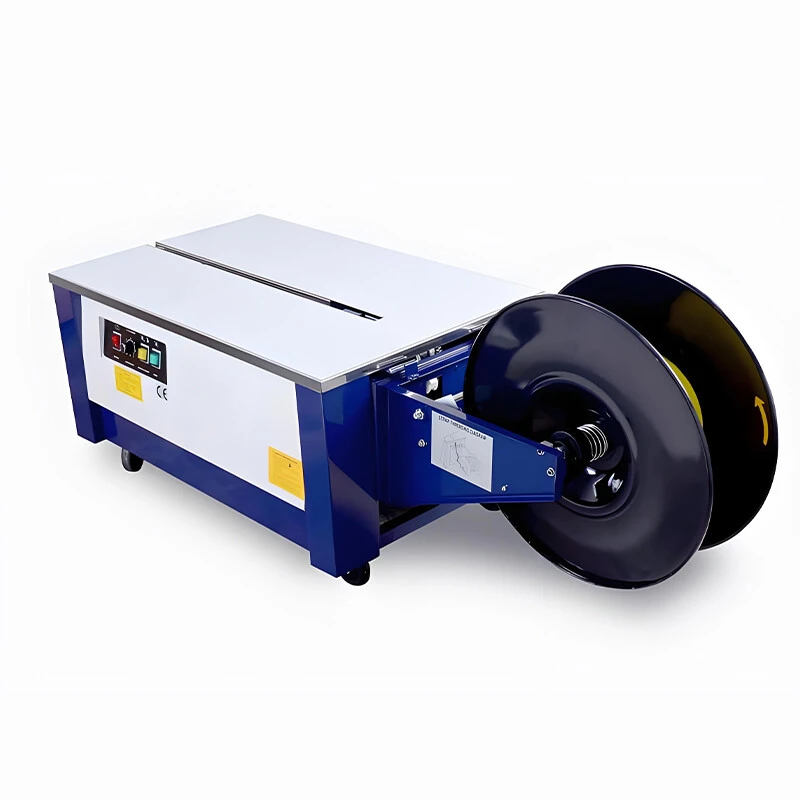

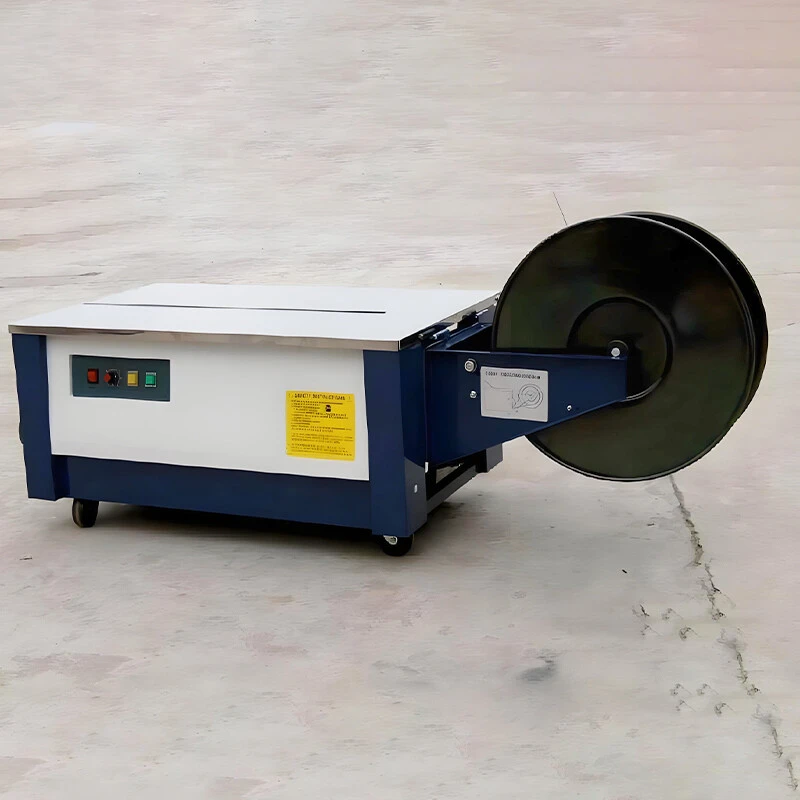

Low bed baler

PRODUCT DESCRIPTION

Semi-automatic baler is a machine that is manually supplied with packaging materials and contents, but can automatically complete other packaging processes.

Low-bed baler is a professional baling equipment designed for narrow spaces or low working scenes. Its core feature is to reduce the height of the fuselage to adapt to specific production line requirements


PRODUCT FEATURES

1. Motor + reducer + cam operation, completely no need to add oil, the motor stops running immediately after the baling is completed (saving electricity);

2. Strong tightening force without slipping, tooth structure bonding, high-strength cutting knife, good performance and long life;

3. The movement and control body shell are integrally die-cast aluminum alloy, which will never rust;

4. And the parts are all precisely made by CNC machine tools, with soft mechanical operation, excellent durability and perfect functions;

5. The tension and storage belt can be adjusted by yourself;

6. Especially with the use of ultra-thin high-quality belts! The cost can be reduced by 30-50%.


Power source110-120/200-240V, 50/60Hz,1 PH,0.25kw ,2.5A
Packing speed≤3 second/path
Tension range5-50kg
Hot-adhering positionbottom
Working table height460mm
Min. packaging size60mm*60mm
Applicable PP strapwidth: 6-15mm, thickness 0.5-0.85mm
Applicable PP strap spoolinner dia.: 210mm
Machine size L850 mm x W545mm x H460mm
Shipping size L870mm x W560mm x H610mm
WeightN.W:65kg G.W:74kg
Environment moisture35%-85%RH
Bottom adhesionsurface≥90%, width≥20%, deviation of position≤2mm
