PRODUCT DESCRIPTION

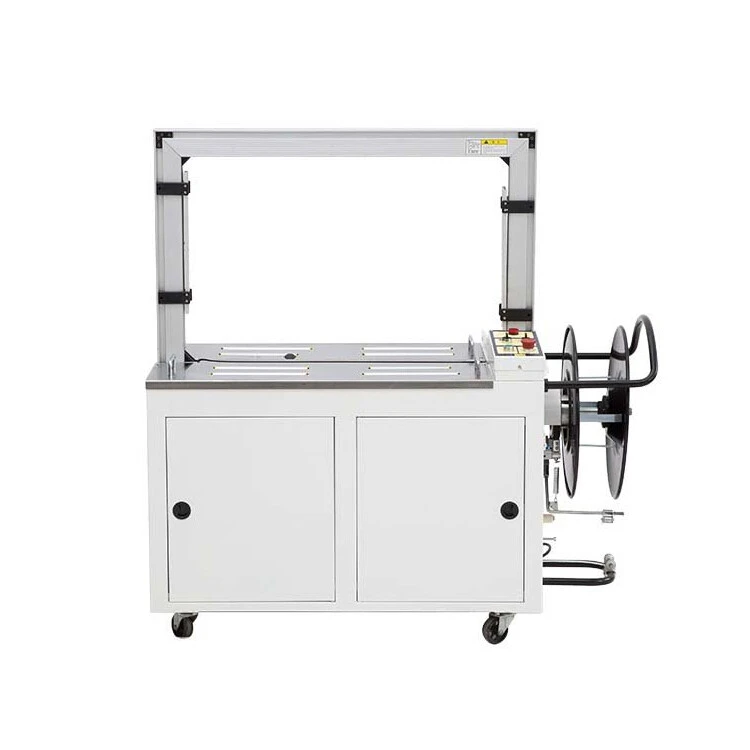

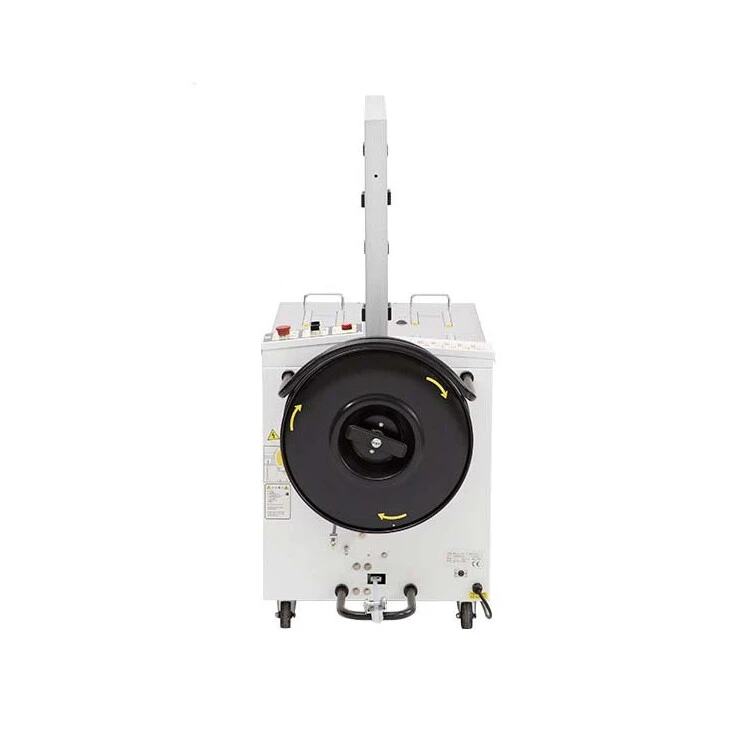

High-table automatic baler, the table is equipped with 8 non-powered rollers. During the baling process, the user only needs to gently push the items to complete the baling operation. The unique tensioning structure design of the machine makes the machine have stronger tightening force. It can be used alone or in conjunction with other packaging machines. It is suitable for automatic baling and bundling of various sizes of goods such as carton baling, wooden box baling, and paper baling in the food, medicine, hardware and other industries.
PERFORMANCE CHARACTERISTICS
Steel knife box, higher wear resistance
This baler adopts a unique tensioning structure design with stronger tightening force
Flip-top panel, easy maintenance and maintenance
New electric heating device, fast heating and long life
Single-chip electronic control, complete functions and easy operation
| Voltage | 380V 50/60HZ 3 phase 1000W/10A |
| Packaging speed | 28-30 channels/min |
| Tightening force | 0-90kg (adjustable) |
| Load-bearing capacity | 80kg |
| Paste position | Bottom |
| Work surface height | 750mm (customizable) |
| Frame | 1. Standard size: W800mm × H 600mm (internal size, can be customized as required)
2. Material: Aluminum alloy |
| Applicable strapping | Width (9,10,11,12,13,15) mm Thickness (0.55-1.0) mm
(Please confirm the width and thickness of the final strapping tape before placing an order) |
| Roll adaptability | Width 160mm, inner diameter 200mm～210mm, outer diameter 400mm～500mm
Tensile strength: maximum 150kg |
| Packing method | Parallel packaging;
Manual operation, inching, continuous hitting, ball switch and foot switch |
| Product size | L (200-∞) W (≤750) H (≤500) mm |
| Machine size | L1380 X W620 X H1450mm |
| Packing size | L1500×W700×H1050mm (1.1CBM, after the frame is removed) |
| Weight | Net weight: 180kg Gross net: 220kg |
| Noise | ≤75DB |
| Environmental conditions | Humidity≤98%, Temperature 0-40℃ |
| Bottom bonding | Bond surface≥90%, Bond width≥20%, Bond position deviation≤2mm |
